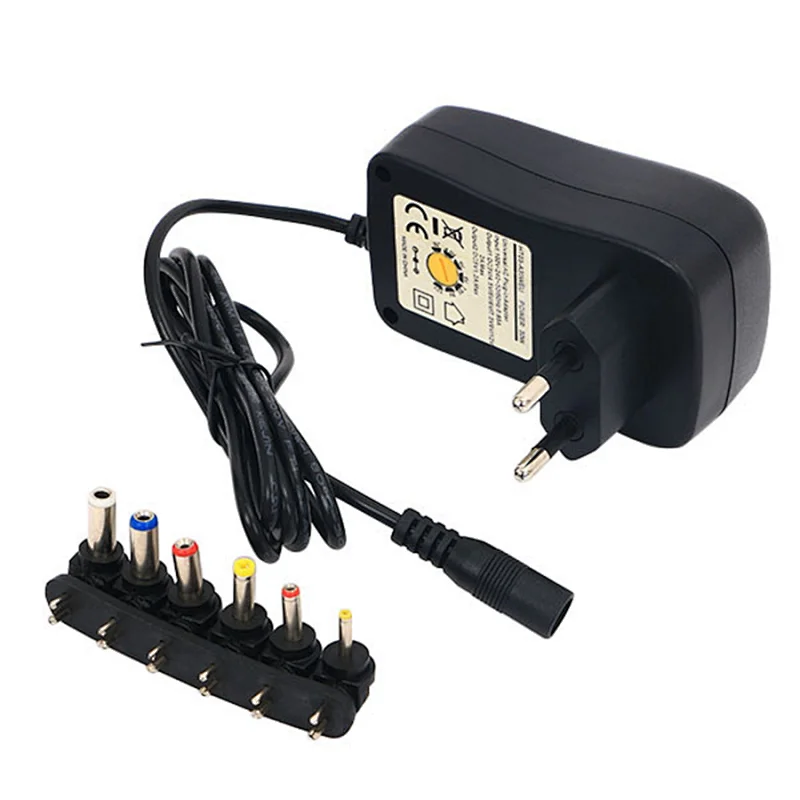

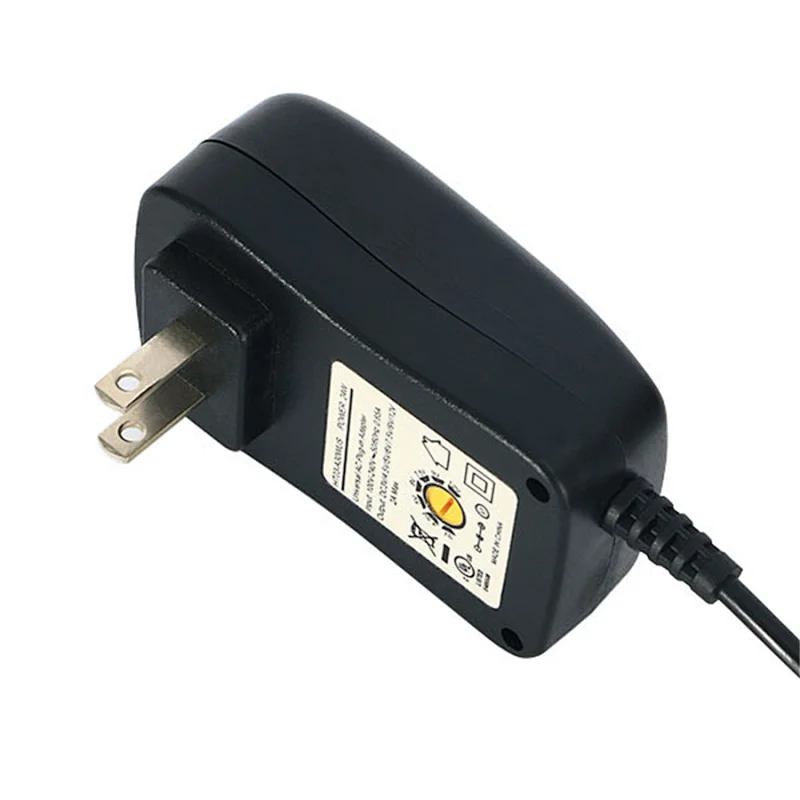

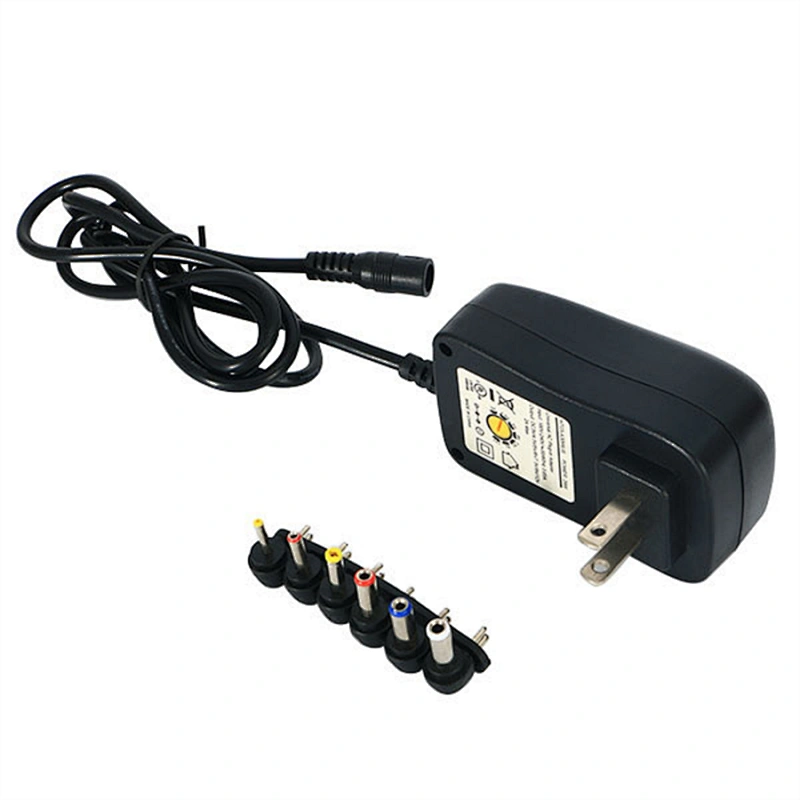

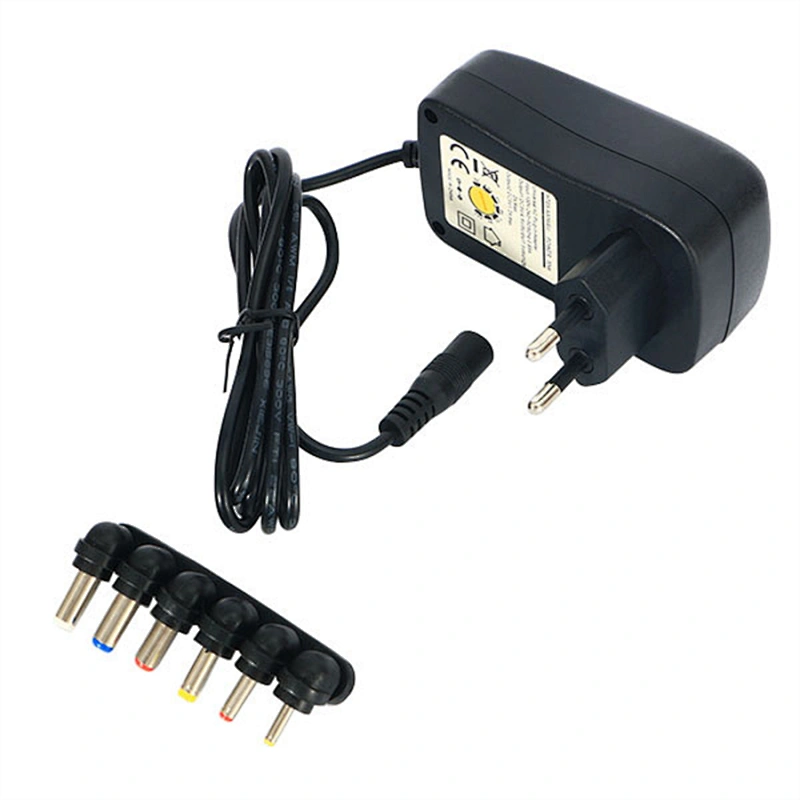

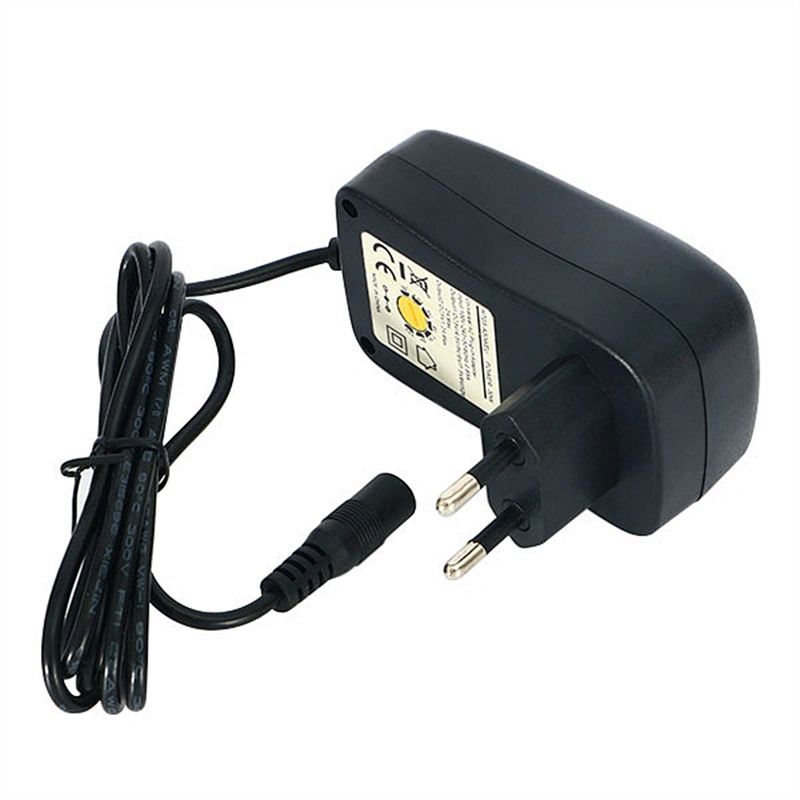

24W Multi Voltage 3V~12V universal AC DC Regulated power supply switching adapter with 6 Selectable Tips
24W Multi Voltage 3V~12V universal AC DC Regulated power supply switching adapter with 6 Selectable Tips
24W Multi Voltage 3V~12V universal AC DC Regulated power supply switching adapter with 6 Selectable Tips
24W Multi Voltage 3V~12V universal AC DC Regulated power supply switching adapter with 6 Selectable Tips
24W Multi Voltage 3V~12V universal AC DC Regulated power supply switching adapter with 6 Selectable Tips
24W Multi Voltage 3V~12V universal AC DC Regulated power supply switching adapter with 6 Selectable Tips
24W Multi Voltage 3V~12V universal AC DC Regulated power supply switching adapter with 6 Selectable Tips

24W Multi Voltage 3V~12V universal AC DC Regulated power supply switching adapter with 6 Selectable Tips

  • Minimum order quantity:1 piece
  • Model NO.: HT03-120200EU
    • Place of Origin:Guangdong, China
    • Brand Name:OEM
    • Model Number:HT03-120200EU
    • Output Type:AC
    • Connection:Plug In
    • Input Voltage:AC 100-240V
    • Output Voltage:DC 12V 2A
    • Frequency range:50/60Hz
    • Conversion efficiency:≥ 80%
    • Certificate:ETL CB CE FCC SAA PSE
    • Warranty:2 Years
    • DC Jack (plug):5.5*2.1*10/5.5*2.5*10mm / Customerized
    • Type:Wall Type
    • Product Name:power adapters
    • Color:White Black Customized

    24W Multi Voltage 3V~12V universal AC DC Regulated power supply switching adapter with 6 Selectable Tips



    Hot Selling



    Datasheet
    AC DC 3-12V 0.1A-2A Max 24W power adapter features:
    * Flame retardant plastic housing
    * Two-end cable type
    * 3-12Vvoltage output
    * 0.1-2Ampere output
    * Single output
    * 100% full load burn-in test
    * Over load protection & Over current protection & Over voltage protection & Short circuit protection



    Input Voltage:AC 100-240V Ripple & Noise(mVp-p):< 1%
    Output Voltage:DC 12V 2A Line Regulation± 2% max
    Frequency range50/60Hz Load Regulation± 5% max
    Product Dimension: 85*85*35 Working temperature-10°C ~+ 45°C
    Conversion efficiency:≥ 80% Storage temperature-20°C ~ +85°C
    Product Overviews



    Company Information



    Production Lines



    Delivery



    FAQ
    1. Are you a manufacturer?

    Yes, we are a professional power adapter manufacturer since 2008

    2. What is the application of your products?

    Our power supply is suitable for charging LED strips, LED lamps, IT products, security cameras, printers, large projectors, smart homes, home appliances, set-top boxes and beauty equipment, etc.

    3. What kinds of certifications do you have?

    We have passed UL, CUL, ETL, FCC, CE, GS, KC, KCC, CB, PSE, SAA, C-Tick, BIS, IRAM & CCC certification for a series of private
    molds.

    4. Is sample order acceptable? If yes, sample lead time?

    Yes, a sample order acceptable. The sample lead time is 3-7 days if no special requirements.

    5. What is your MOQ for a mass production order?

    MOQ is 2k per model. For new customer’s 1st trial order, we accept 500pcs/ model to best support customers and test the market.

    6. What are the shipping methods you can offer?

    By express, by air or by sea according to customers' requirements.
