- Place of Origin:Guangdong, China
- Brand Name:OEM
- Model Number:HT03-120200EU
- Output Type:AC
- Connection:Plug In
- Input Voltage:AC 100-240V
- Output Voltage:DC 12V 2A
- Frequency range:50/60Hz
- Conversion efficiency:≥ 80%
- Certificate:ETL CB CE FCC SAA PSE
- Warranty:2 Years
- DC Jack (plug):5.5*2.1*10/5.5*2.5*10mm / Customerized
- Type:Wall Type
- Product Name:power adapters
- Color:White Black Customized

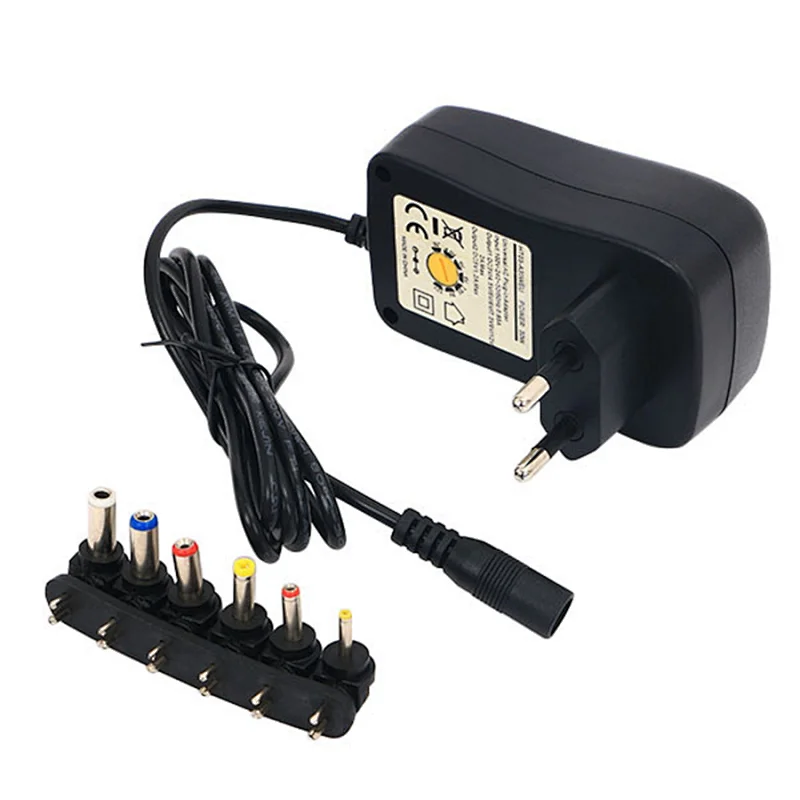

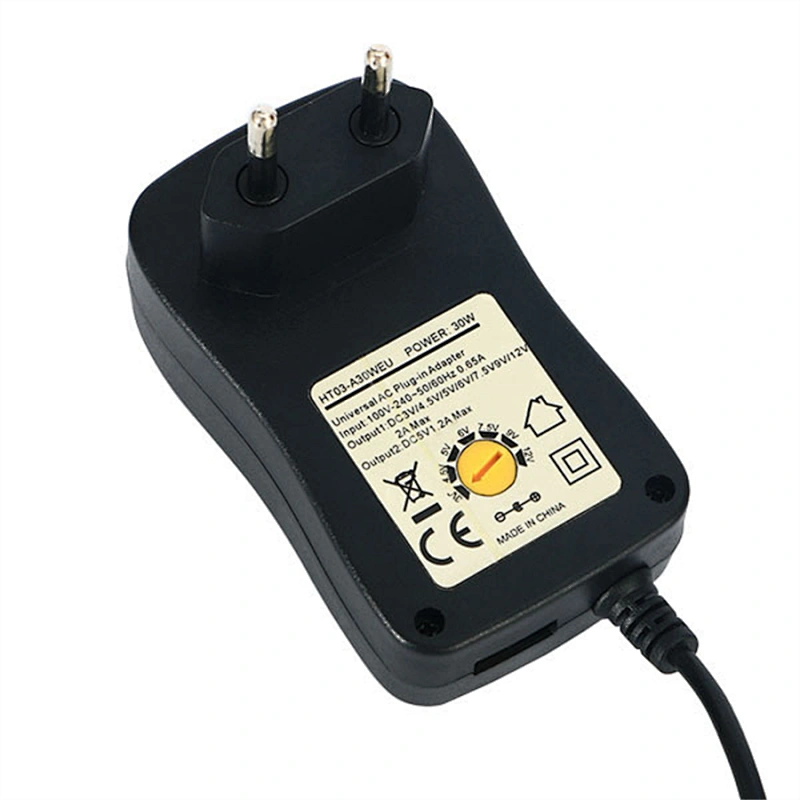

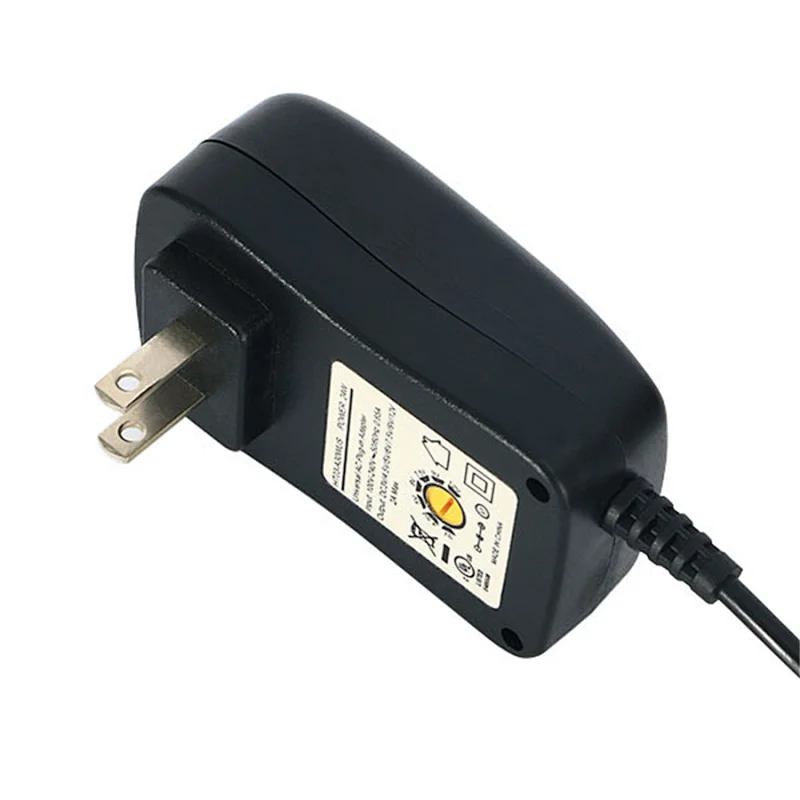

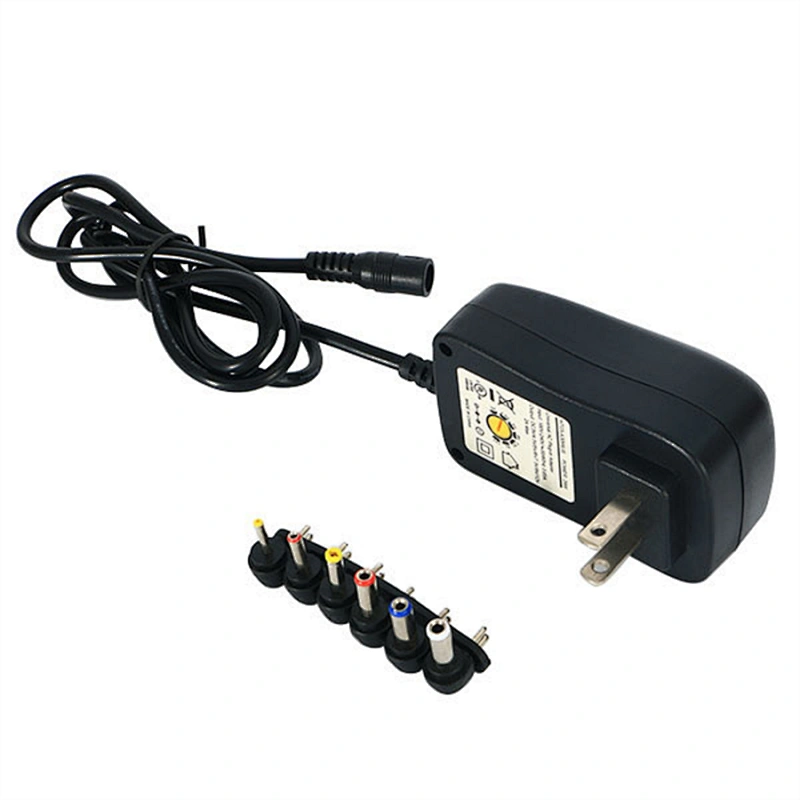

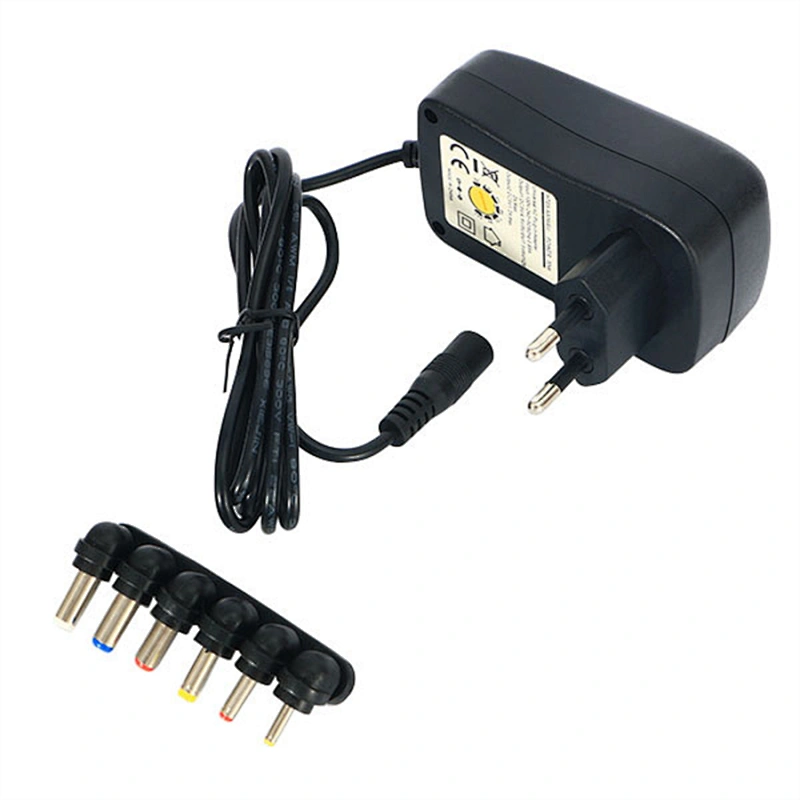

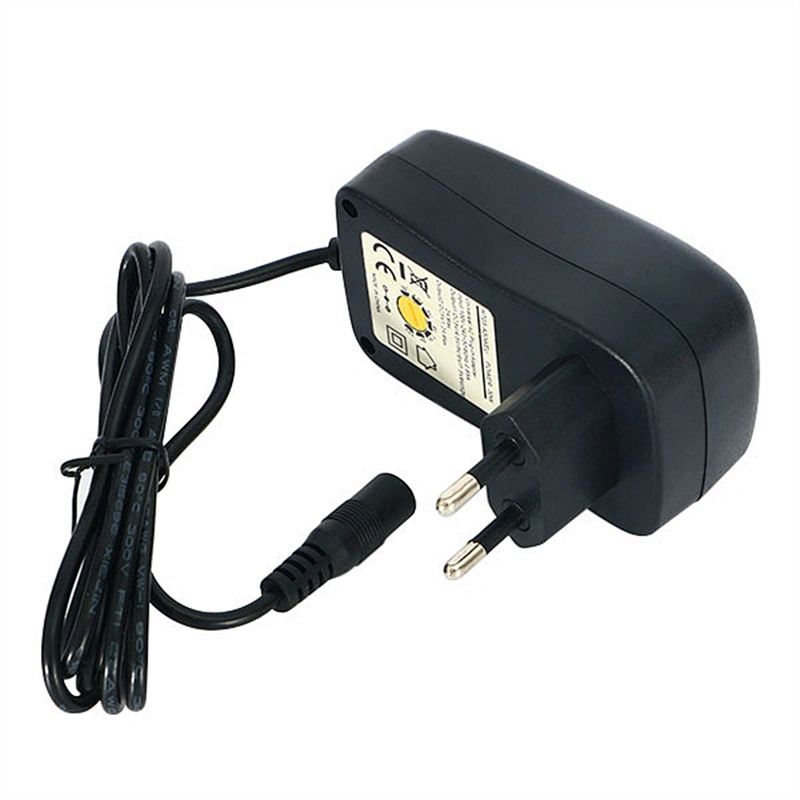

24W Multi Voltage 3V~12V universal AC DC Regulated power supply switching adapter with 6 Selectable Tips
Hot Selling
Datasheet
| AC DC 3-12V 0.1A-2A Max 24W power adapter features: | ||||||
| * Flame retardant plastic housing | ||||||
| * Two-end cable type | ||||||
| * 3-12Vvoltage output | ||||||
| * 0.1-2Ampere output | ||||||
| * Single output | ||||||
| * 100% full load burn-in test | ||||||
| * Over load protection & Over current protection & Over voltage protection & Short circuit protection |
| Input Voltage: | AC 100-240V | Ripple & Noise | (mVp-p):< 1% | |
| Output Voltage: | DC 12V 2A | Line Regulation | ± 2% max | |
| Frequency range | 50/60Hz | Load Regulation | ± 5% max | |
| Product Dimension: | 85*85*35 | Working temperature | -10°C ~+ 45°C | |
| Conversion efficiency: | ≥ 80% | Storage temperature | -20°C ~ +85°C |
Product Overviews
Company Information
Production Lines
Delivery
FAQ
| 1. Are you a manufacturer? | ||||||
| Yes, we are a professional power adapter manufacturer since 2008 | ||||||
| 2. What is the application of your products? | ||||||
| Our power supply is suitable for charging LED strips, LED lamps, IT products, security cameras, printers, large projectors, smart homes, home appliances, set-top boxes and beauty equipment, etc. | ||||||
| 3. What kinds of certifications do you have? | ||||||
| We have passed UL, CUL, ETL, FCC, CE, GS, KC, KCC, CB, PSE, SAA, C-Tick, BIS, IRAM & CCC certification for a series of private | ||||||
| molds. | ||||||
| 4. Is sample order acceptable? If yes, sample lead time? | ||||||
| Yes, a sample order acceptable. The sample lead time is 3-7 days if no special requirements. | ||||||
| 5. What is your MOQ for a mass production order? | ||||||
| MOQ is 2k per model. For new customer’s 1st trial order, we accept 500pcs/ model to best support customers and test the market. | ||||||
| 6. What are the shipping methods you can offer? | ||||||
| By express, by air or by sea according to customers' requirements. |
